+Collins Youldon Products - Inspection Hatches & Manlids
Inspection and access lids / hatches (manlids) play a crucial role in enabling the safe and responsible operation of tankers. Whether they be for liquid energy distribution (fuel oil, diesel, gasoil, etc), firefighting (water, foam concentrates), or a raft of other liquids such as – but not limited to - foodstuffs, fertilisers, industrial chemicals or solvents. They can also serve to keep unauthorised access at bay while allowing easy access for inspection and maintenance tasks.
Key Applications
- Fire industry - for inspection and / or access to foam or water tanks (Style 42VM or 42VM)
- Bulk handling - for the tops of silos for grain, powders, such as e.g. flour (Style 42M / 40VM)
- Bitumen industry - for filling and inspection of tankers (Style 46A)
- Fuel (Style 50A)
- Offshore - for inspection and filling of foam tanks for fire protection (Style 42A)
- Water- for bowsers in construction for toilet facilities, etc. washdown (not potable water) for hygienic applications (Style 40A, Style 42A)
The +Collins Youldon range of inspection and access lids provides safe, reliable access for filling, inspection and maintenance of non‑pressurised tanks and silos. Model options designed for welding directly into the tank shell are available - these inspection and access hatches eliminate the need for adaptor flanges and are available with or without integrated pressure relief. With multiple aperture sizes, materials and pressure settings available, we can offer flexible solutions for industrial, fuel, and liquid storage applications.

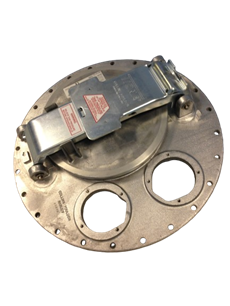

Style 40 / 42 Series – weld-in tank access manlids
The Style 40 and Style 42 inspection and access lid series from +Collins Youldon provides secure access solutions for non‑pressure tanks and silos with a maximum working pressure of up to 3psi. Designed for filling, visual inspection and access, the range includes standard non‑pressure lids as well as variants with integrated pressure relief. These manlids are available across multiple baseplate sizes, materials and relief settings.
Key Highlights
- Widely used in industrial and liquid storage applications
- Models in series: Style 40A, 42A, 40VM, 42VM
- Specialist Style 40VMP variant designed specifically for petroleum spirit and fuel oil applications
- Suitable for non‑pressure tanks and silos up to up to 3psi
- 10" quick‑release hinged fill cover for filling and visual inspection
- Weld‑in neck ring design eliminates the need for adaptor flanges
- Available with or without integrated pressure relief
- Multiple nominal relief pressure options on VM variants
- Mild steel construction as standard, with a stainless-steel option on Style 42A
- Removable baseplates provide larger access apertures when required
- Lockable options available (key supplied separately)
- (not ADR compliant; does not comply with EN13317)
Download Datasheet [Link]
Style 46A – Wide-opening, Hinged Inspection Hatch
The popular Style 46A manlid is a robust access solution designed for the filling & inspection of tanks requiring a larger, unobstructed opening. Featuring a hinged lid mounted on an 18" inside diameter neck ring, Style 46A is intended for welding directly into the tank shell and is suitable for applications with a maximum working pressure of up to 3psi.
Key Highlights
- For the filling & inspection of tankers for e.g. bitumen
- Suitable for non‑pressure tanks and silos up to up to 3psi
- Hinged lid design allows straightforward inspection and access
- 18" inside diameter neck ring designed for direct welding into the tank shell
- Eliminates the need for adaptor flanges
- Manufactured in mild steel
- Available as a complete assembly with deep neck ring or as lid‑only variant
- Nitrile bonded cork gasket supplied as standard
- Swingbolt supplied with provision for fitting a seal if required
Download Datasheet [Link]

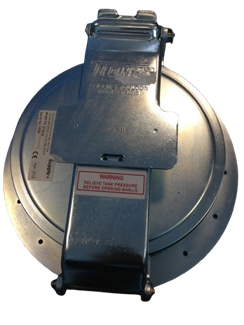

Style 50A – Fuel Tanker Aluminium Manlid
The Style 50A manlid is a specialist aluminium manhole cover designed specifically for fuel oil road tanker applications. Incorporating an integral 10" emergency pressure relief valve, the Style 50A was originally approved under earlier dangerous substances regulations and is now supplied primarily for remount and replacement applications where permitted.
Key Highlights
- Designed for fuel oil road tanker applications
- Aluminium construction with 10" hinged fill cover
- Integral emergency pressure relief valve for over‑filling and fire engulfment scenarios
- Rugged construction with few moving parts for long service life
- Lock fitted at time of manufacture (key supplied separately)
- Supplied for remount applications where regulations permit use
Download Datasheet [Link]
